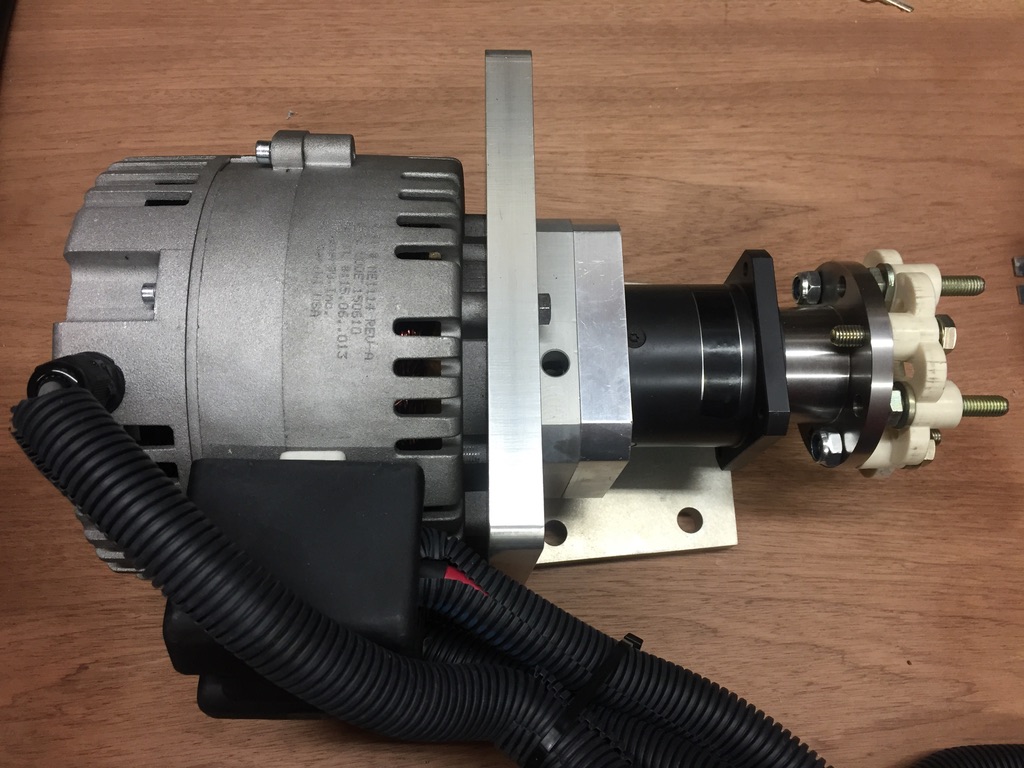

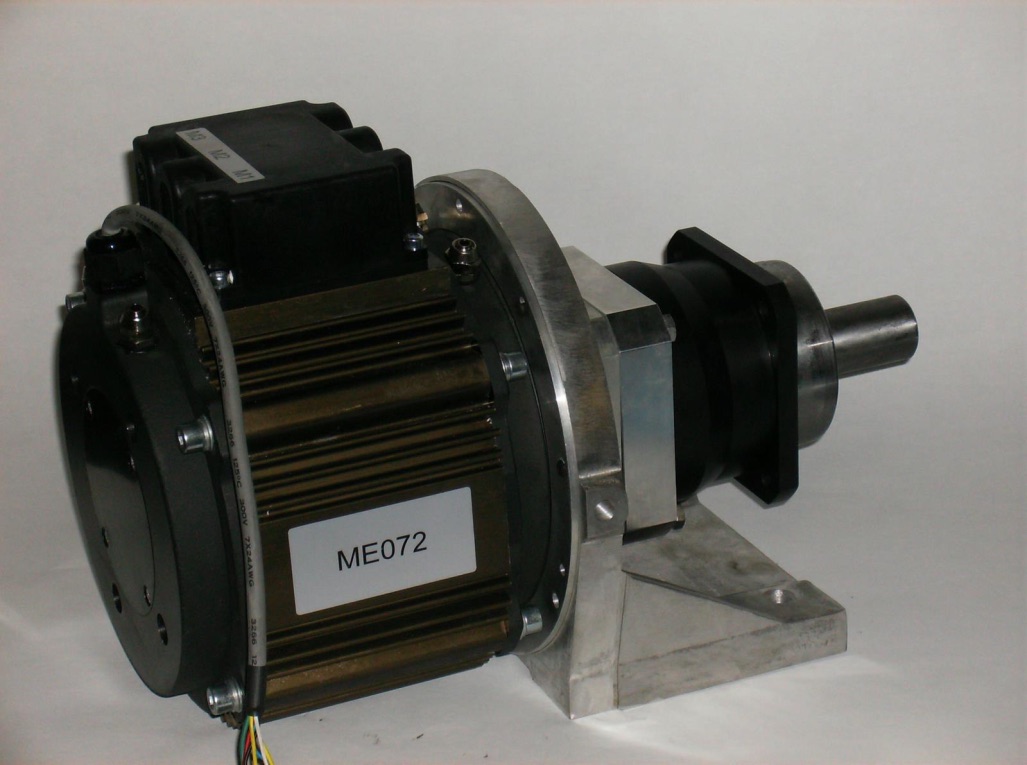

20 h.p. Compact Electric Engine
- Water Cooled Open Frame Planetary Electric Engine
- Permanent Magnet Dual Stator High Efficiency Electric Motor
- Planetary Gearbox with Choice of Ratios
- 48 volt 15 KW Peak, 8.5 KW Continuous Power output
- Closed Circuit Water Cooling with Heat Exchanger
- Magnetically Coupled Water Pump
- Machined Billet Aluminum Thrust Plate with Water Cooling Passage
- Choice of Throttle
- Can be used as a DC Generator coupled to a diesel motor or water generator impeller
- Primarily used to replace 30 h.p. diesel sailboat engine for inshore racers.
- Can be mounted in close confines in small areas or to replace a V-Drive.

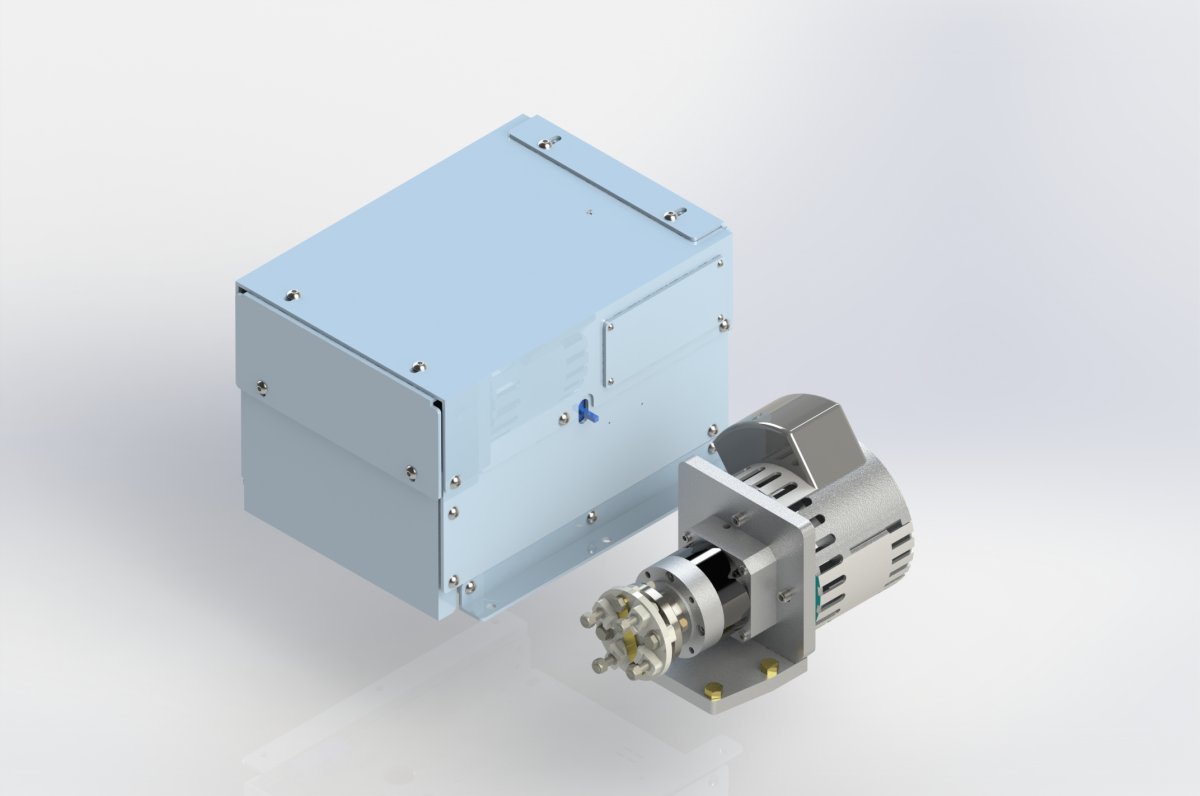

- Controller is separately mounted between motor and batteries.
